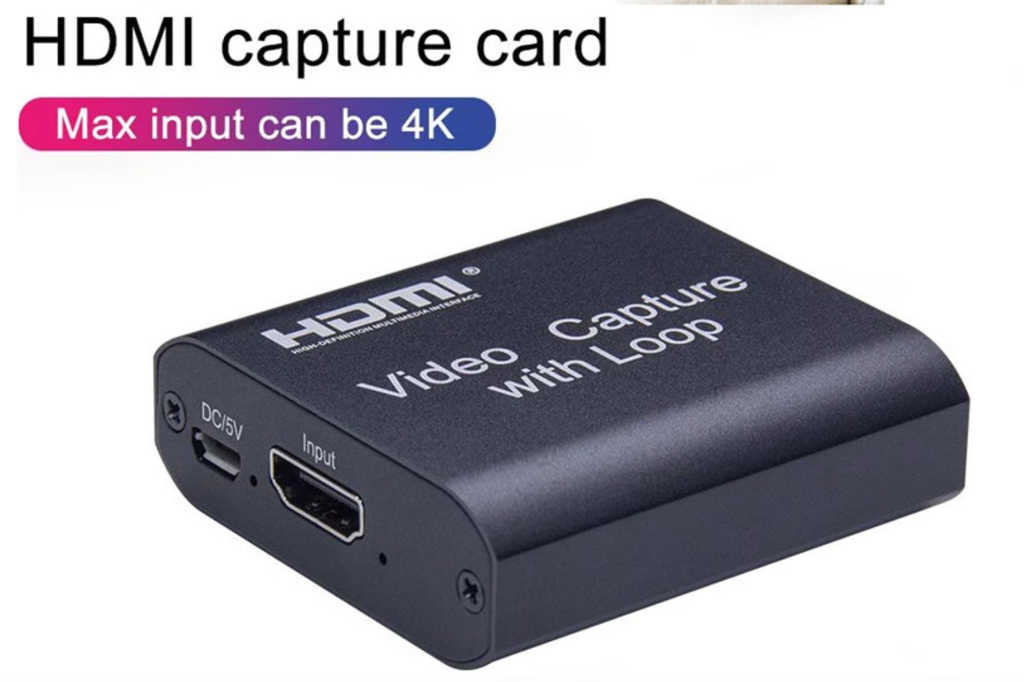

4K Graphics Capture Card HDMI to USB 3.0 video Recorder Box for Live Streaming Video Recording hdmi digital converter
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
Features:
* Support HDMI loop out;
* Support microphone audio input ,3.5 stereo output;
* Support microphone audio and hdmi audio superimpose capture;
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
Specifications:
HDMI resolution ……....…………………… Max input can be 4K
Support video format ……………..………....… 8/10/12bit Deep color
Video output format ……………............................ YUV,JPEG
Video output resolution ……………............ Max output can be 1080P
Support audio format ………………..…................................. L-PCM
Input cable distance .…...…...... ≤15m,AWG26 HDMI standard cable
Max working current ……………………........................… 0.7A/5VDC
Operating Temperature range ……………………..……… (-10 to +55℃)
Dimension (L x W x H) …………....................... 59x56x19 (mm)
Weight …….…..………………………........……….........…… 56g
4K HDMI to HDMI Packing List:
1 * Capture Card
1 * USB3.0 cable
1 * Micro USB cable
1 * Manual
