Mini UHD 4K 4 Input 1 Output HDMI 2.0 Switch 4x1 HDMI Switcher Audio Extractor With ARC IR Control HDCP 2.2 For Apple TV PS4;

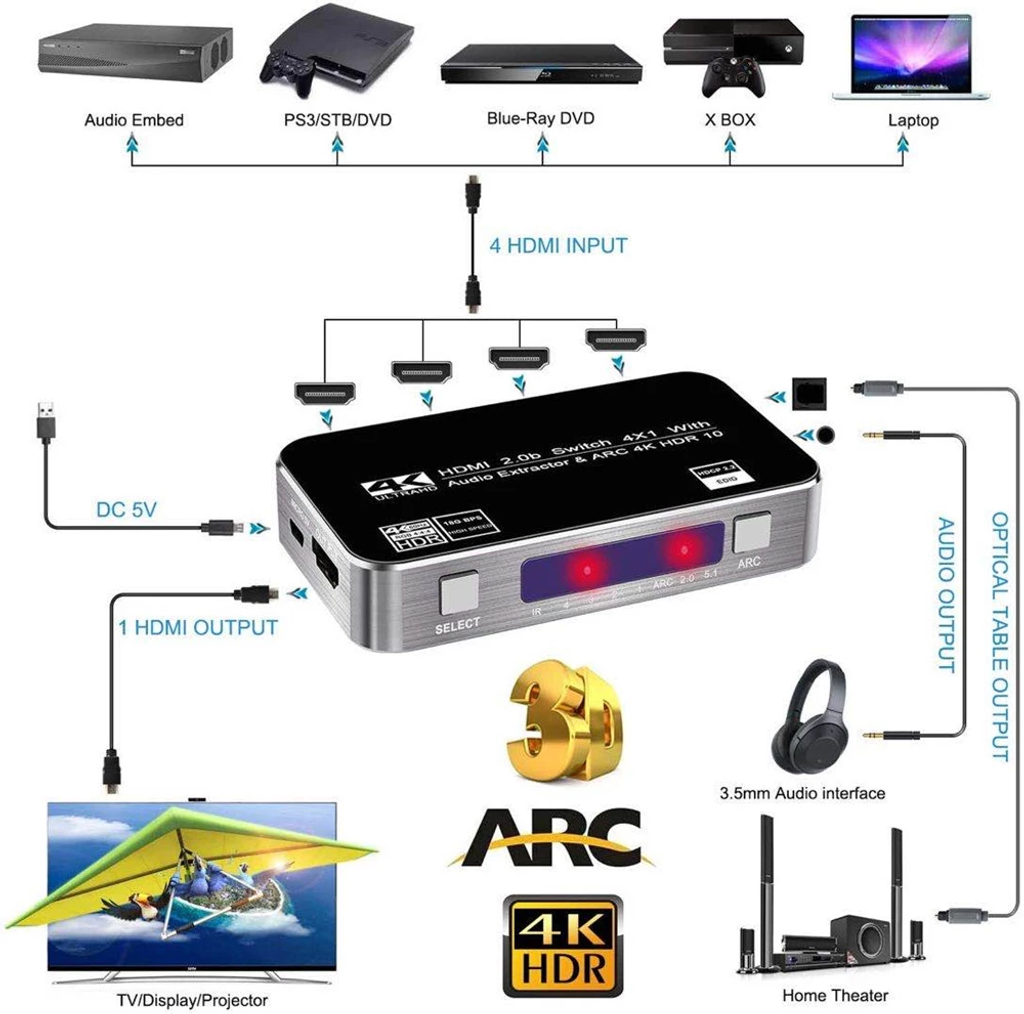

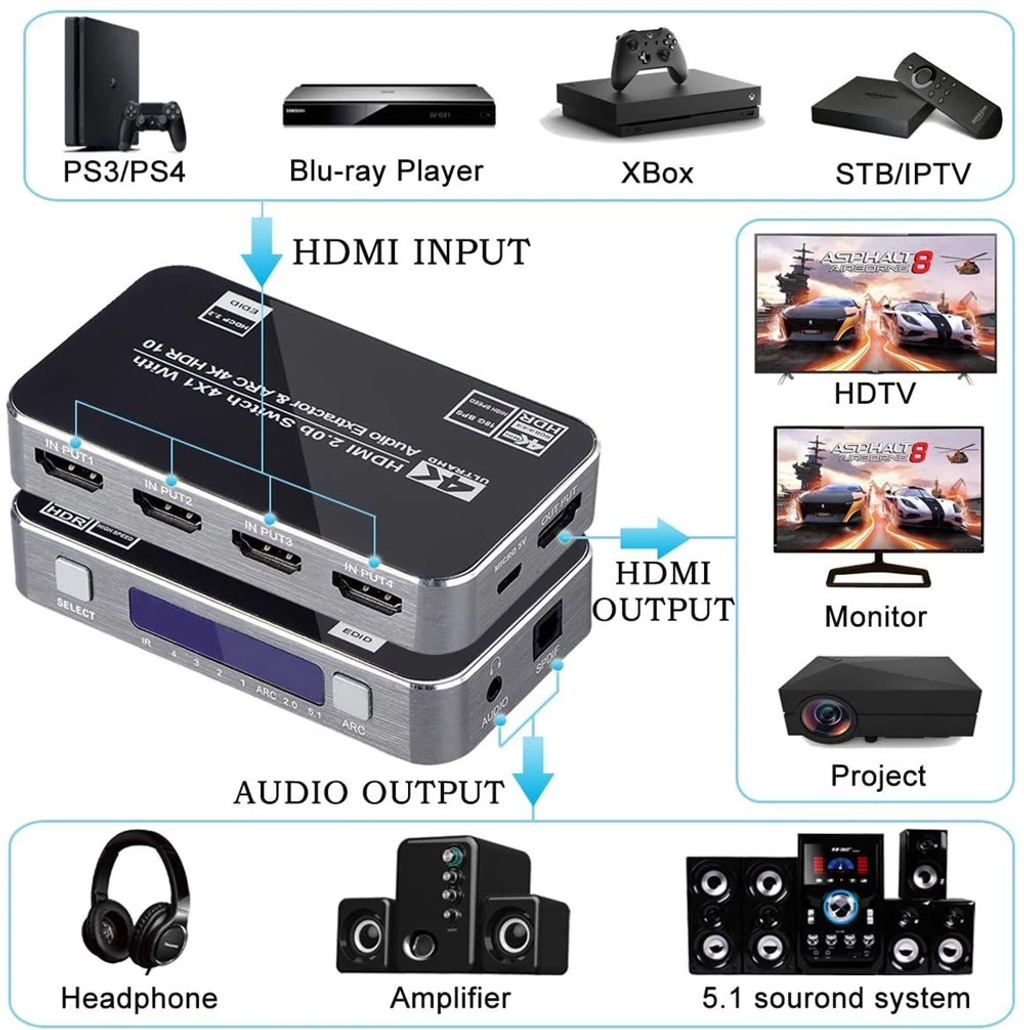

This HDMI switch 4x1 with audio extractor allows up to 4 HDMI input source and 1 HDMI Output display, helps reduce the clutter of HDMI wires being fed into your HDTV. Simultaneously, Via optical/3.5mm port add external speakers, amplifiers, soundbars to your film/game system with ease.(Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
Features:
UHD High Resolution and Quality: HDMI Switch 4 in 1 out support 4K@60Hz, HDR 10, HDCP2.2, RGB 4:4:4, and Dobly-True HD/DTS-HD audio. Deep Color to 36bit, Max Bandwidth of 18Gbps/600MHZ.
HDMI ARC Adapter: HDMI2.0 Switcher 4x1 Supports ARC (Audio Return Channel), extracts the Audio from TV to Soundbar or Amplifier. Connect your TV HDMI (ARC) Port to this switch HDMI Output Port with HDMI Cable, then using optical Toslink, Coaxial, 3.5mm or L/R cable connect to the Soundbar, Speaker, Home theater, A/V receivers etc.No distortion of audio or video. All audio port support ARC.
HDMI Auto-Switch with Remote Control - It will automatically skip to the next port with a viable signal input; It will automatically skip to the most recently inserted HDMI signal source. Manual switching can be done by wireless IR remote. (tips: It will not allows auto-switch to the apple TV due to current protection principle)
Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, 5.1 digital surround, Dobly TrueHD, DTS-HD. (Note: This HDMI audio switch can't decode only pass through the audio formats.)
Each Set product Package Include:
1 ×HDMI Switch
1 ×Remote Control
1 ×5V AC Power Adapter
1 ×User’s Manual
